Description

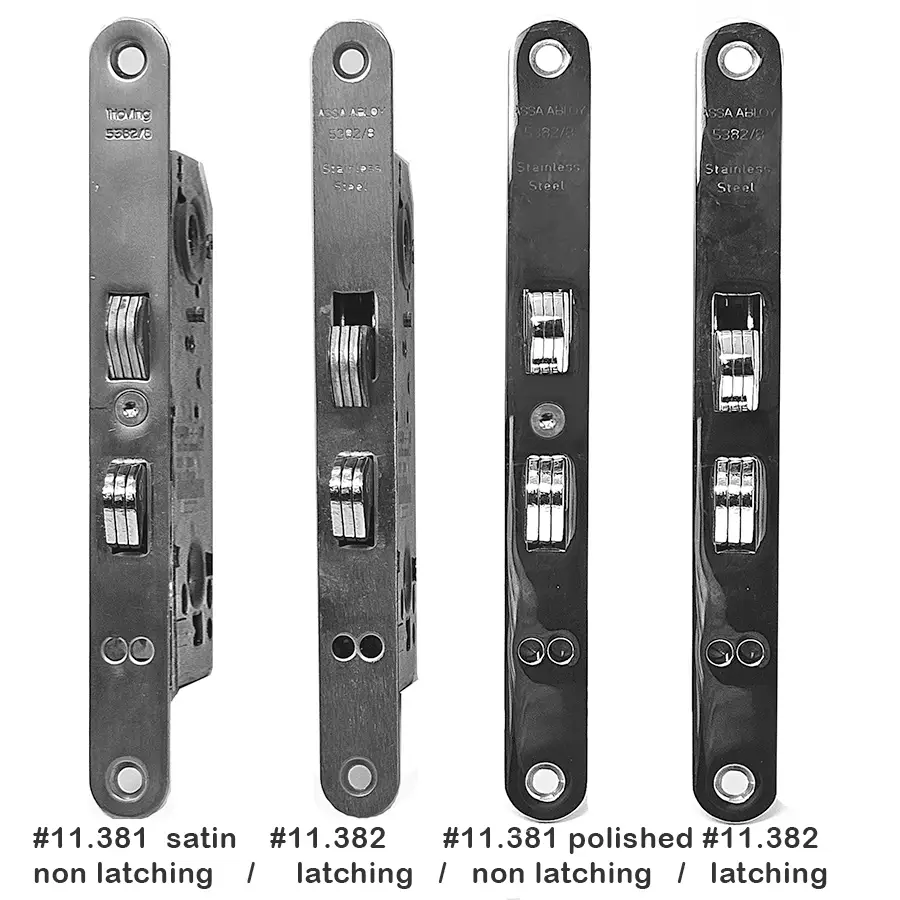

TrioVing, VingCard sliding door mortise lock with 55 mm. backset in polished stainless steel. This lock’s latch bolt can be modified by our team to work with electric doors.
Entry operation achieved by keyway part #: 11.520 outside of door and by thumb-turn part #: 11.544 inside of door. For this application the profile cylinder, keyway and thumb-turn must be ordered separately. Strike plate part #: 11.314 is also not included and must be ordered separately.

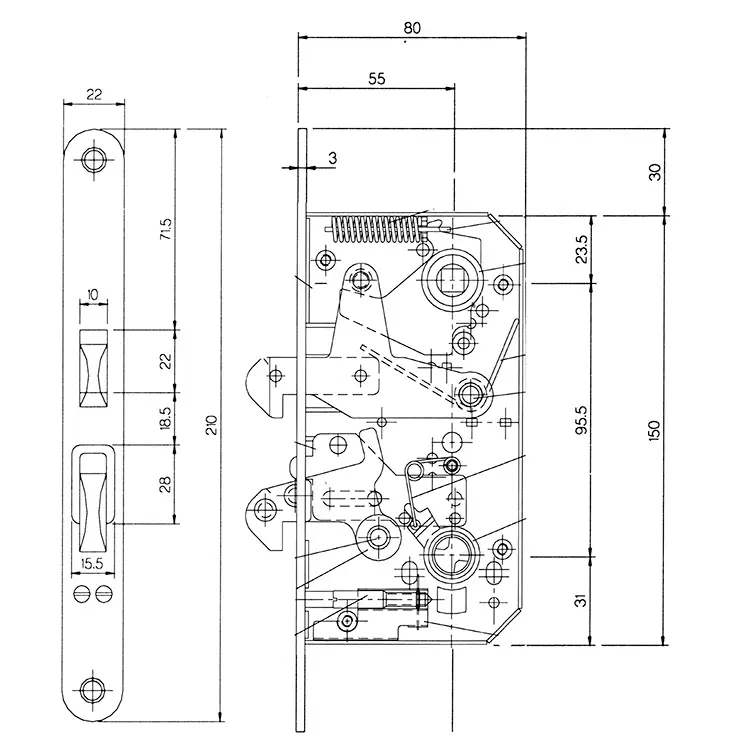

Door thickness requirement: 38 to 63 mm. (1 1/2 to 2 1/2 in.)
