Description

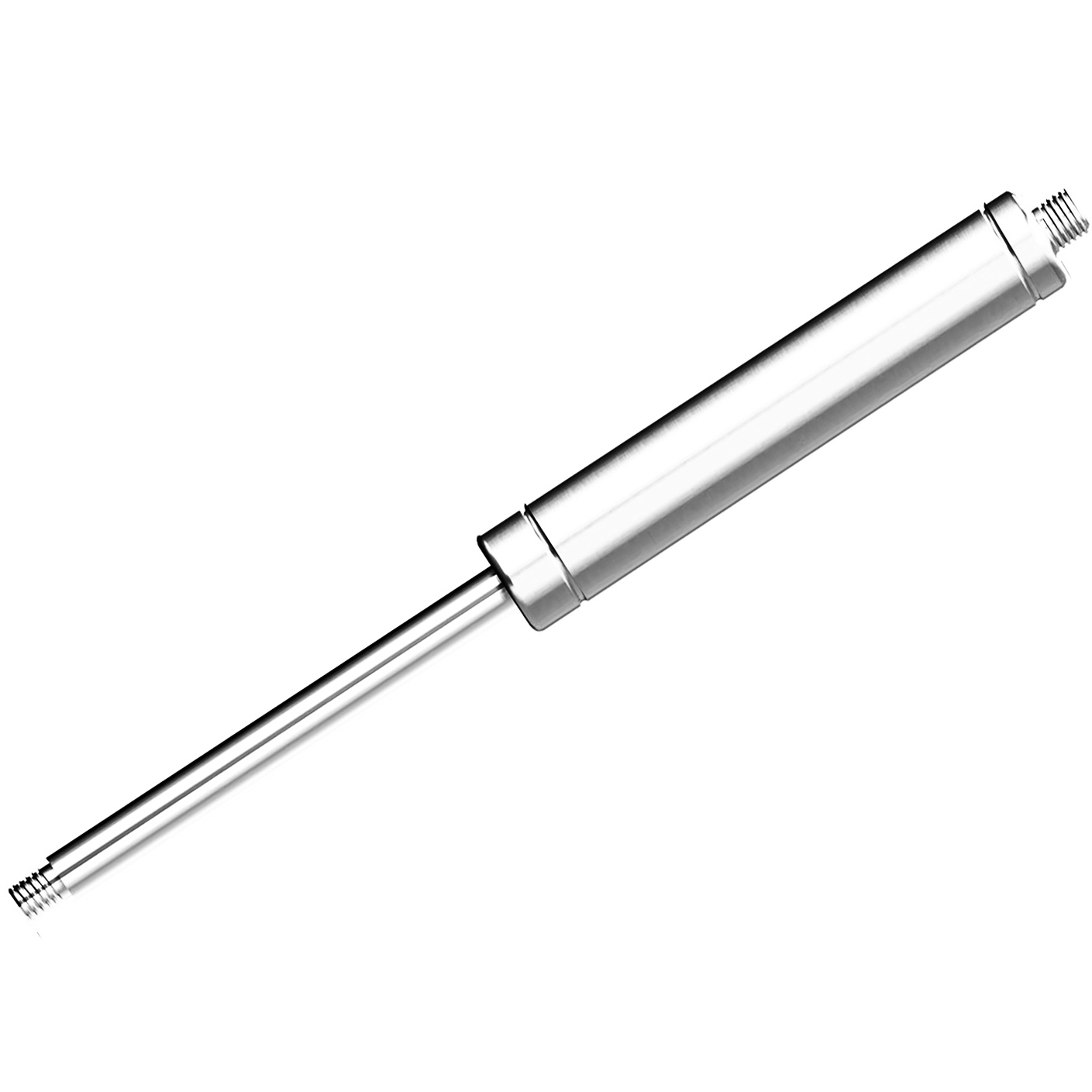

316 stainless steel compression style gas spring.
Overall dimensions:
Rod diameter: 14 mm.
Body diameter: 28 mm.
Minimum force: 250 Newton
Maximum force: 2500 Newton
Thread size: M10

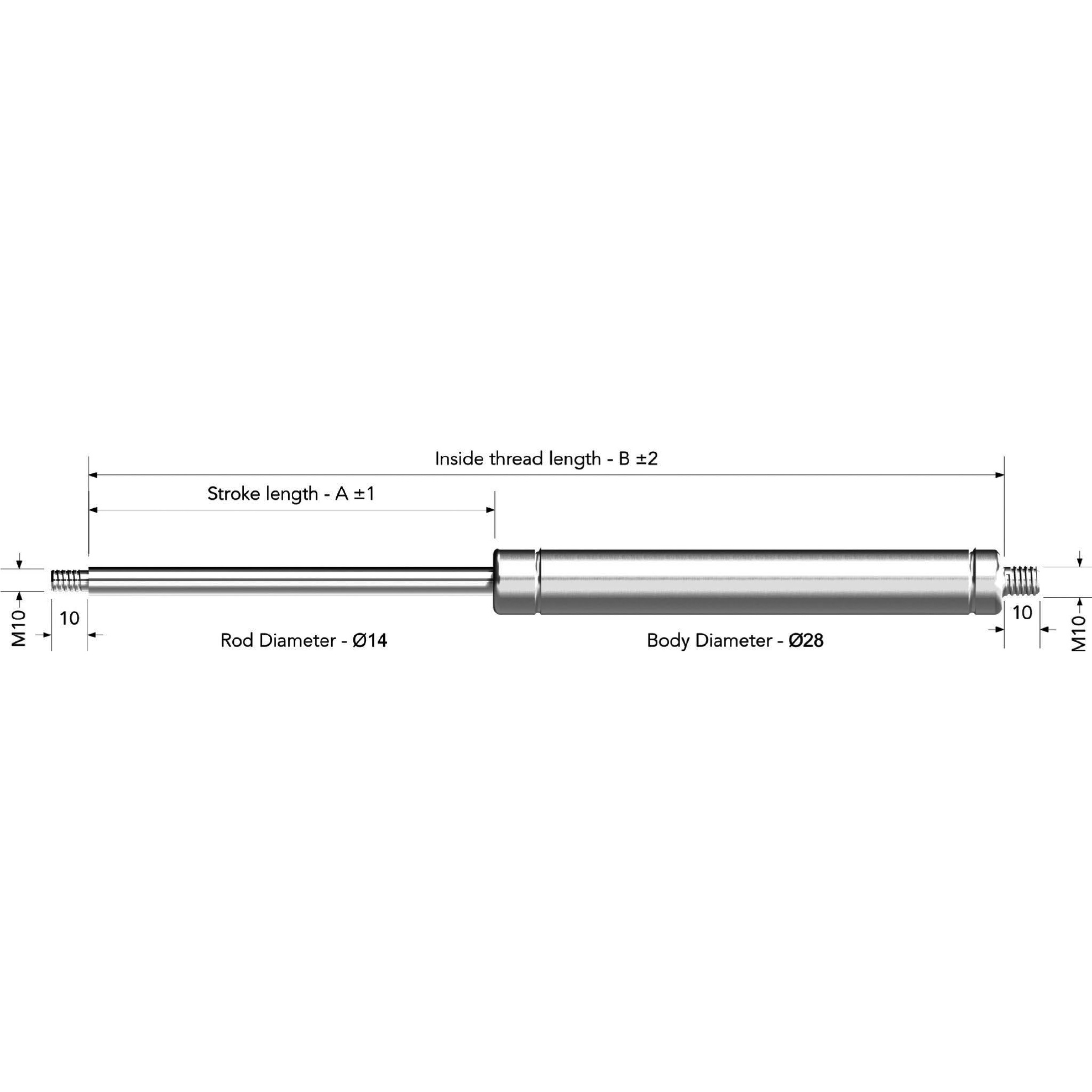

Dimensions per drawing attached:
A – Stroke length: 200 mm.
B – Overall length, not including thread: 450 mm.
Stainless Steel Compression Gas Spring. For hatches from 55 LBS to 500 LBS using 2 gas spring, Rod Diameter(mm): 14. Body Diameter(mm): 28. Finish: Polished. Stroke Length(mm): 200. Inside Thread Length (mm): 450. Customizations: With Valve for easy charging and bleeding. Thread Size: M10 x 1.5. Minimum Force (N): 250. Maximum Force (N): 2500. Use the table in “Description” to verify your Newton Force Calculations.
