Description

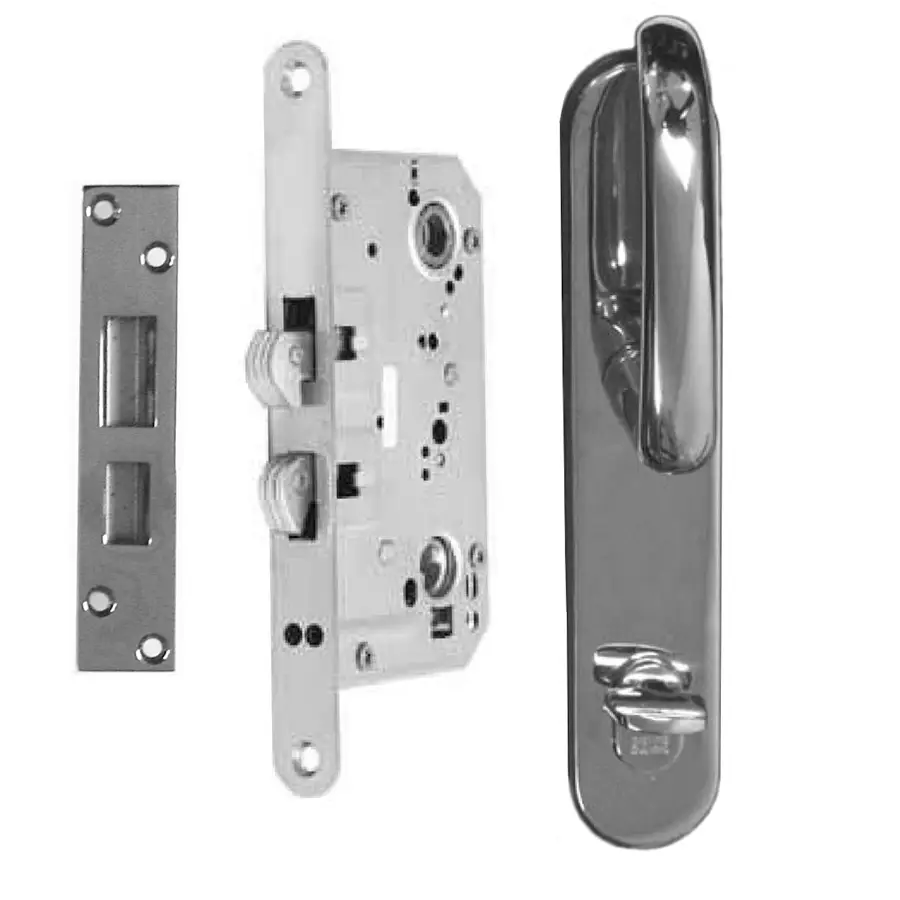

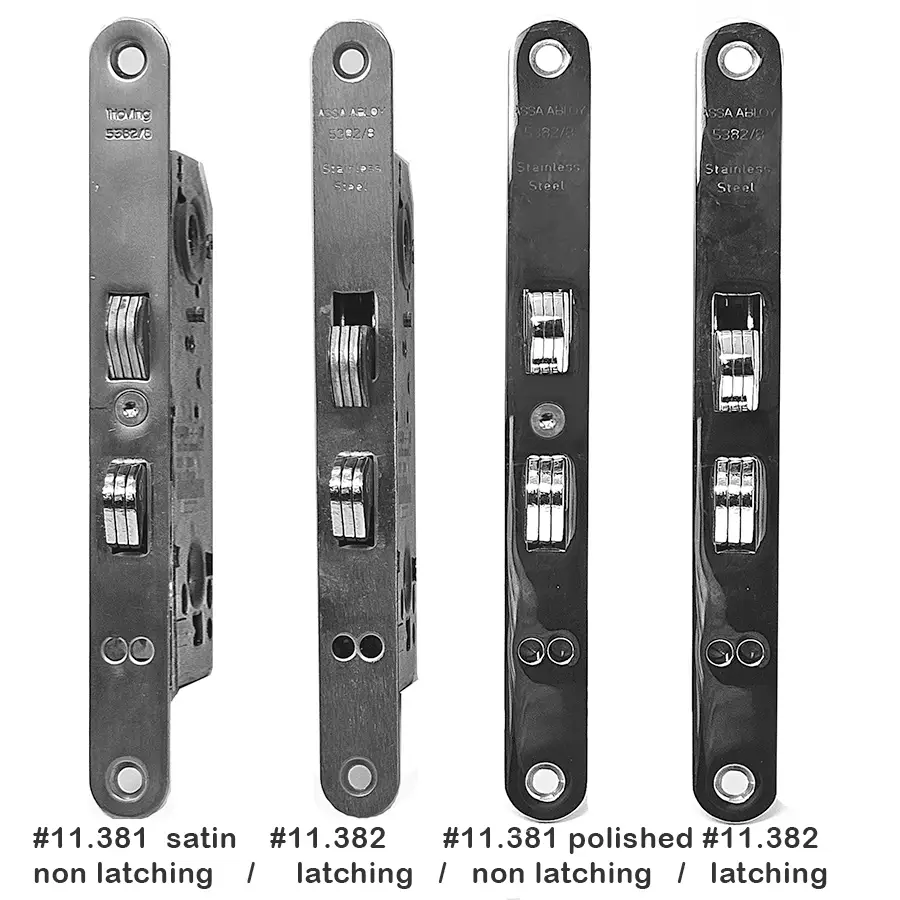

TrioVing, VingCard style (modified) entry sliding door mortise lock in polished stainless steel. This lock has been modified for use with electric doors. Turning the set screw disables the latch bolt. See picture below.
Entry operation achieved by keyway part #: 11.520 outside of door and by thumb-turn part #: 11.544 inside of door. For this application the profile cylinder, keyway and thumb-turn must be ordered separately. Strike plate part #: 11.314 is also not included and must be ordered separately.
Door thickness requirement: 38 to 63 mm. (1 1/2 to 2 1/2 in.)
